SA8600 Longbord Test Chip

by G-Man of Group 42

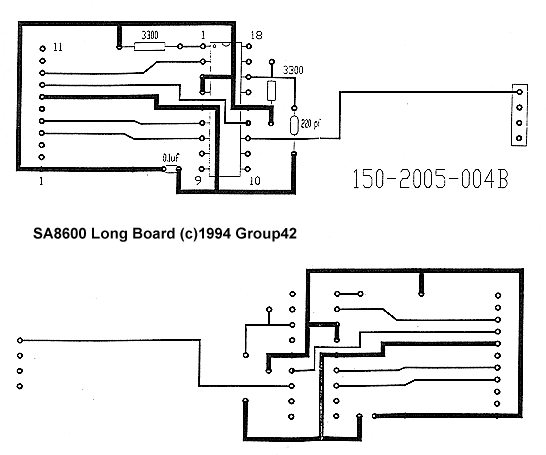

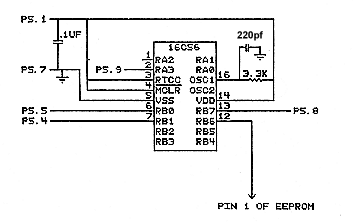

The SA8600 Longboard was the first stable 8600 fix we did. The board layouts are here and the schematic is here. But first you must burn a PIC16C56 with this code.

Snap the unit in and and power up the box. You should now be able to change the channels on the converter box from 1 to 99. However most units will take up to 48 hours for the converter to receive system data that will align the channels to the correct channel number. The box must be plugged in and have the input cable connected in order to receive system data.

If the converter stops working properly, unplug the AC cord, wait 15 seconds and plug back in.
