mov
instruction, for example, takes between five and twelve clock cycles
to execute depending upon the operands. The following table provides the
timing for the various forms of the instructions on the 886 processors.
i
p
register and adding two values together). Another difficulty with doing certain operations concurrently is that one operation may depend on the other's result. For example, the last two steps of the add
instruction involve adding to
values and then storing their sum. You cannot store the sum into a register until after you've computed the sum. There are also some other resources the CPU cannot share between steps in an instruction. For example, there is only one data bus; the CPU can
not fetch an instruction opcode at the same time it is trying to store some data to memory. The trick in designing a CPU that executes several steps in parallel is to arrange those steps to reduce conflicts or add additional logic so the two (or more) ope
rations can occur simultaneously by executing in different functional units. Consider again the steps the mov reg, mem/reg/const
instruction requires: ip
register to
point at the next byte. ip
to point beyond the operand. ip
register (so we cannot overlap incrementing ip with it) and it uses the bus to fetch the instruction opcode from memory. Every step that follows this one depends upon the opcode it fetches from mem
ory, so it is unlikely we will be able to overlap the execution of this step with any other. The second and third operations do not share any functional units, nor does decoding an opcode depend upon the value of the ip
register. Therefore, w
e can easily modify the control unit so that it increments the ip
register at the same time it decodes the instruction. This will shave one cycle off the execution of the mov
instruction. The third and fourth operations above (de
coding and optionally fetching the 16-bit operand) do not look like they can be done in parallel since you must decode the instruction to determine if it the CPU needs to fetch a 16-bit operand from memory. However, we could design the CPU to go ahead and
fetch the operand anyway, so that it's available if we need it. There is one problem with this idea, though, we must have the address of the operand to fetch (the value in the ip
register) and if we must wait until we are done incrementing t
he ip
register before fetching this operand. If we are incrementing ip
at the same time we're decoding the instruction, we will have to wait until the next cycle to fetch this operand. Since the next three steps are optional, the
re are several possible instruction sequences at this point: #1 (step 4, step 5, step 6, and step 7) - e.g., mov ax, [1000+bx] #2 (step 4, step 5, and step 7) - e.g., mov ax, [1000] #3 (step 6 and step 7) - e.g., mov ax, [bx] #4 (step 7) - e.g., mov ax, b
x In the sequences above, step seven always relies on the previous set in the sequence. Therefore, step seven cannot execute in parallel with any of the other steps. Step six also relies upon step four. Step five cannot execute in parallel with step four
since step four uses the value in the ip
register, however, step five can execute in parallel with any other step. Therefore, we can shave one cycle off the first two sequences above as follows: #1 (step 4, step 5/6, and step 7) #2 (step 4, s
tep 5/7) #3 (step 6 and step 7) #4 (step 7) Of course, there is no way to overlap the execution of steps seven and eight in the mov
instruction since it must surely fetch the value before storing it away. By combining these steps, we obtain t
he following steps for the mov
instruction: ip
to point beyond xxxx. mov
instruction. This simple optimization works with most of the other instructions as well. Another problem with the execution of the mov
instruction concerns opcode alignment. Consider the mov ax, [1000]
instruction that appears at location 100 in memory. The CPU spends one cycle fetching the opcode and, after decoding the instruction an determining it has a 16-bit
operand, it takes two additional cycles to fetch that operand from memory (because that operand appears at an odd address - 101). The real travesty here is that the extra clock cycle to fetch these two bytes is unnecessary, after all, the CPU fetched the
L.O. byte of the operand when it grabbed the opcode (remember, the x86 CPUs are 16-bit processors and always fetch 16 bits from memory), why not save that byte and use only one additional clock cycle to fetch the H.O. byte? This would shave one cycle off
the execution time when the instruction begins at an even address (so the operand falls on an odd address). It would require only a one-byte register and a small amount of additional logic to accomplish this, well worth the effort. While we are adding a
register to buffer up operand bytes, let's consider some additional optimizations that could use the same logic. For example, consider what happens with that same mov
instruction above executes. If we fetch the opcode and L.O. operand byte on
the first cycle and the H.O. byte of the operand on the second cycle, we've actually read four bytes, not three. That fourth byte is the opcode of the next instruction. If we could save this opcode until the execution of the next instruction, we could sh
ave a cycle of its execution time since it would not have to fetch the opcode byte. Furthermore, since the instruction decoder is idle while the CPU is executing the mov instruction, we can actually decode the next instruction while the current instructio
n is executing, thereby shaving yet another cycle off the execution of the next instruction. On the average, we will fetch this extra byte on every other instruction. Therefore, implementing this simple scheme will allow us to shave two cycles off about 5
0% of the instructions we execute. Can we do anything about the other 50% of the instructions? The answer is yes. Note that the execution of the mov instruction is not accessing memory on every clock cycle. For example, while storing the data into the des
tination register the bus is idle. During time periods when the bus is idle we can pre-fetch instruction opcodes and operands and save these values for executing the next instruction. The major improvement to the 8286 over the 886 processor is the pref
etch queue. Whenever the CPU is not using the Bus Interface Unit (BIU), the BIU can fetch additional bytes from the instruction stream. Whenever the CPU needs an instruction or operand byte, it grabs the next available byte from the prefetch queue. Si
nce the BIU grabs two bytes at a time from memory at one shot and the CPU generally consumes fewer than two bytes per clock cycle, any bytes the CPU would normally fetch from the instruction stream will already be sitting in the prefetch queue. Note, howe
ver, that we're not guaranteed that all instructions and operands will be sitting in the prefetch queue when we need them. For example, the jmp 1000
instruction will invalidate the contents of the prefetch queue. If this instruction appears a
t location 400, 401, and 402 in memory, the prefetch queue will contain the bytes at addresses 403, 404, 405, 406, 407, etc. After loading ip
with 1000 the bytes at addresses 403, etc., won't do us any good. So the system has to pause for a m
oment to fetch the double word at address 1000 before it can go on. Another improvement we can make is to overlap instruction decoding with the last step of the previous instruction. After the CPU processes the operand, the next available byte in the pref
etch queue is an opcode, and the CPU can decode it in anticipation of its execution. Of course, if the current instruction modifies the ip
register, any time spent decoding the next instruction goes to waste, but since this occurs in parallel

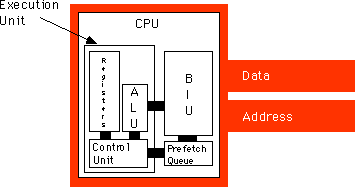

with other operations, it does not slow down the system. This sequence of optimizations to the system requires quite a few changes to the hardware. A block diagram of the system appearsbelow:
The instruction execution sequence now assumes that the following events occur in the background: CPU Prefetch Events:
ip
at the beginning of the clock cycle. mov reg, mem/reg/const
mov mem, reg
instr reg, mem/reg/const (instr = add, sub, cmp, and, or)
not mem/reg
jcc xxxx (conditional jump, cc=a, ae, b, be, e, ne)
ip
register, one cycle. jmp xxxx
ip
register, one cycle. mov
instruction runs on the 8286 compared t
o the 886. This is because the prefetch queue allows the processor to overlap the execution of adjacent instructions. However, this table paints an overly rosy picture. Note the disclaimer: "assuming the opcode is present in the prefetch queue and ha
s been decoded." Consider the following three instruction sequence: ????: jmp 1000 1000: jmp 2000 2000: mov cx, 3000[bx]The second and third instructions will not execute as fast as the timings suggest in the table above. Whenever we modify the value of the
ip
register the CPU flushes the prefetch queue. So the
CPU cannot fetch and decode the next instruction. Instead, it must fetch the opcode, decode it, etc., increasing the execution time of these instructions. At this point the only improvement we've made is to execute the "update ip
" o
peration in parallel with another step. Usually, including the prefetch queue improves performance. That's why Intel provides the prefetch queue on every model of the 80x86, from the 8088 on up. On these processors, the BIU is constantly fetching data for
the prefetch queue whenever the program is not actively reading or writing data. Prefetch queues work best when you have a wide data bus. The 8286 processor runs much faster than the 886 because it can keep the prefetch queue full. However, consider the
following instructions: 100: mov ax, [1000] 105: mov bx, [2000] 10A: mov cx, [3000]Since the
ax, bx,
and cx
registers are 16 bits, here's what happens (assuming the first instruction is in the prefetch queue and decoded): ip
.ip
. ip
.
