Corrupt Cop/Electronic Counter Measures (CC/ECM). Device to jam individual and/or data channels on a 800 MHz trunked radio system. Designed to protect individuals from corrupt police departments.
Schematics
New, improved version including a 800 MHz cellular phone jammer.
- Schematic #1 Programming matrix, sweep generator (103k PNG)

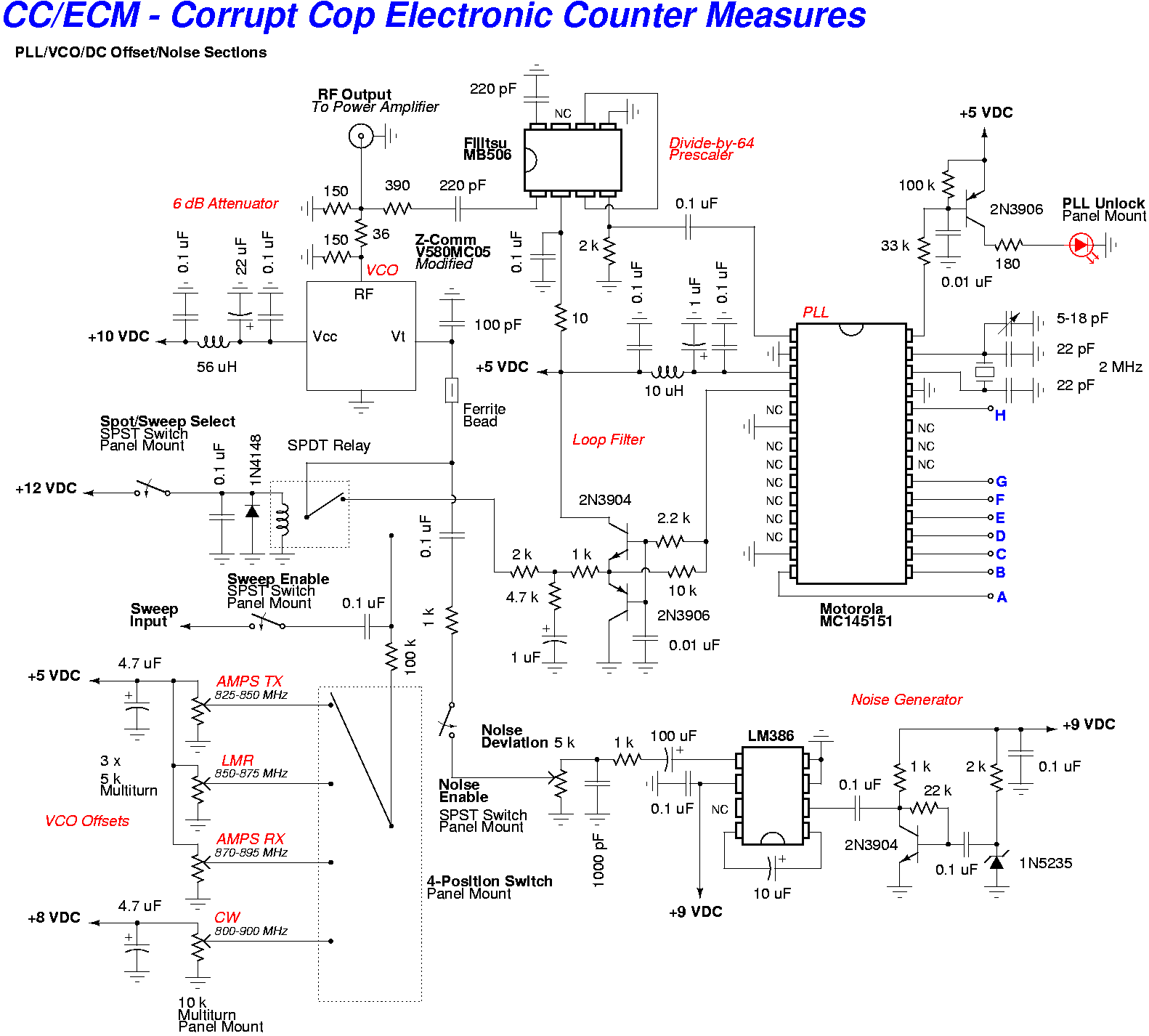

- Schematic #2 PLL, VCO, DC offsets, noise generators (92k PNG)
- Sample diode programming matrix layout
Pictures

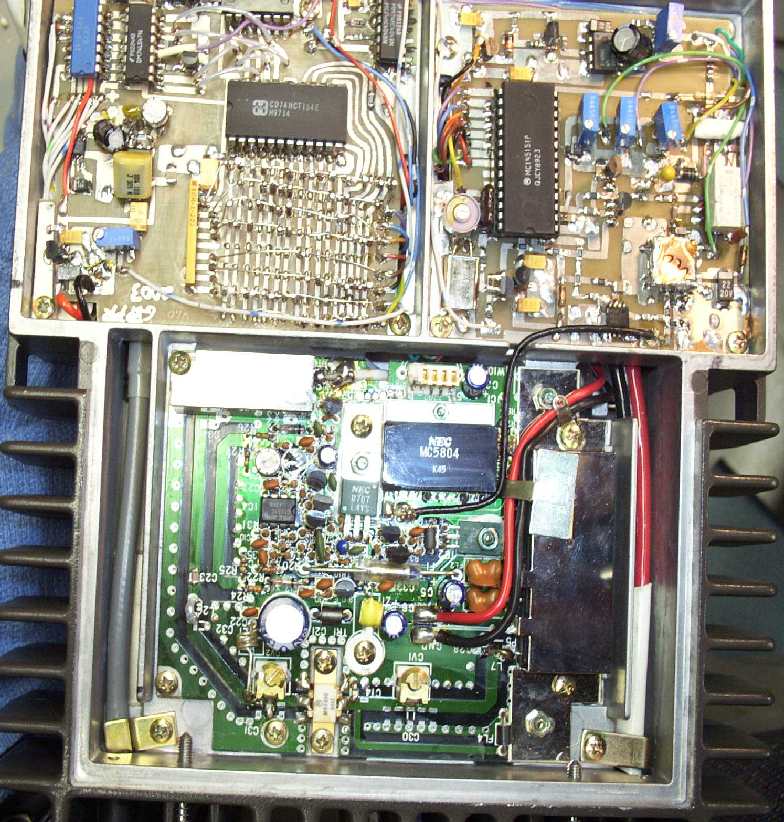

- CC/ECM Jammer - Picture 1 Overview picture

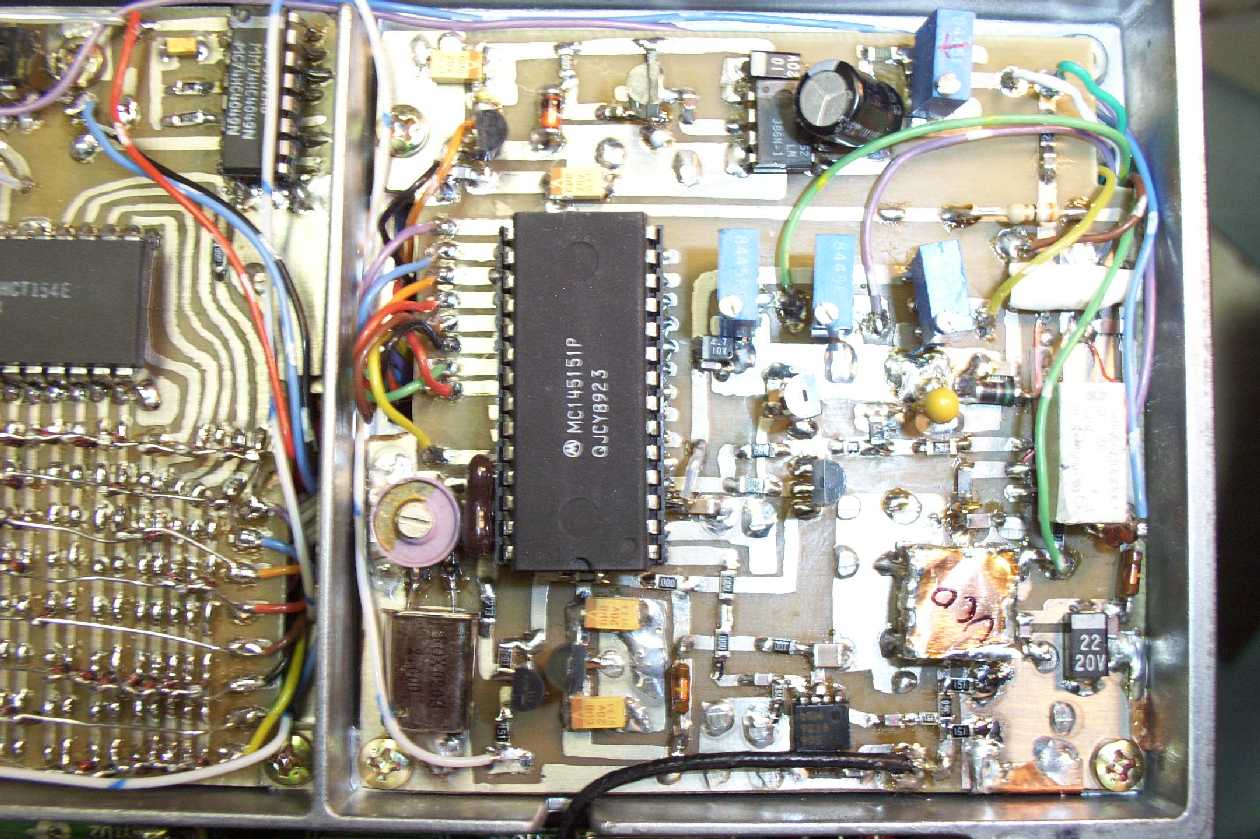

- CC/ECM Jammer - Picture 2 PLL, VCO, noise generator

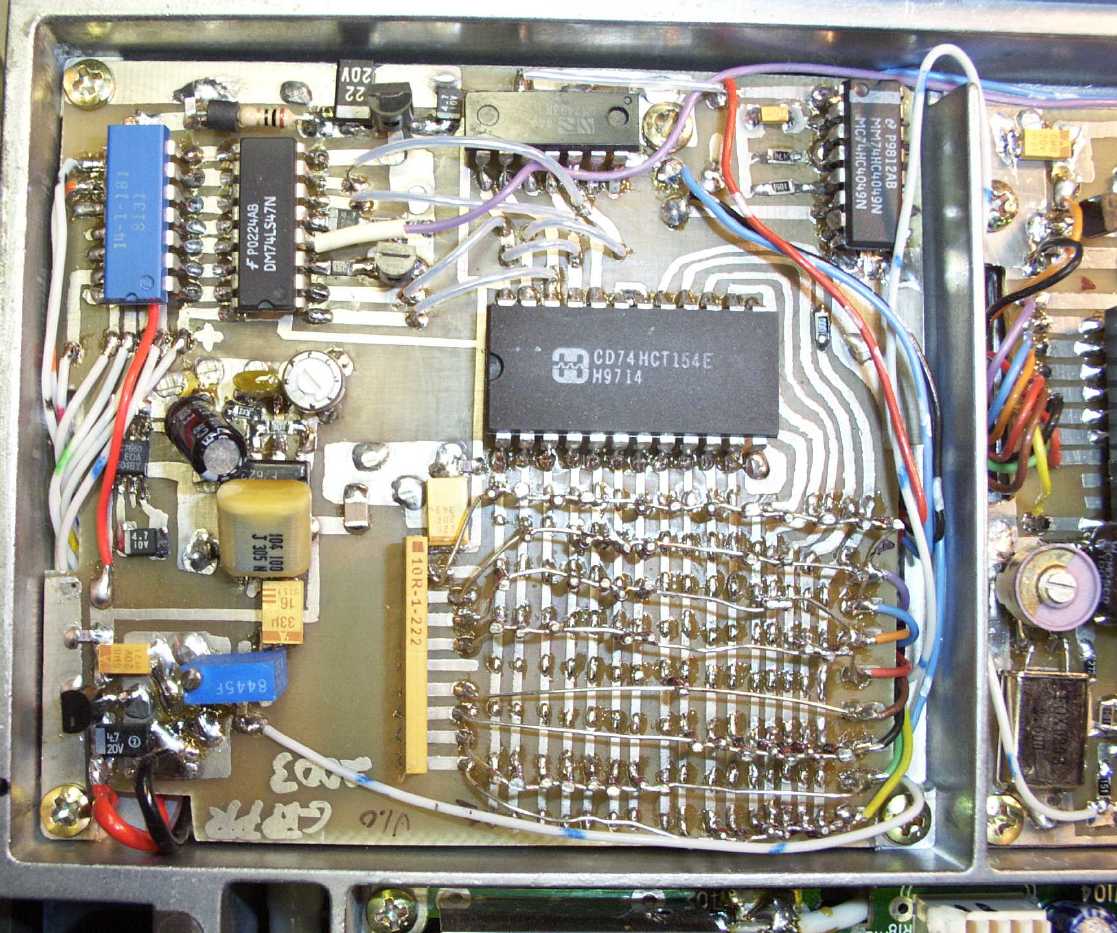

- CC/ECM Jammer - Picture 3 Diode matrix, sweep generator
- CC/ECM Jammer - Picture 4 30 Watt RF power amplifier, Regency WS30200
- CC/ECM Jammer - Picture 5 DC input, control wire buss
Datasheets
- Z-Comm V580MC05 VCO (168k PDF)
- Fijitsu MB506 prescaler (60k PDF)
