R11

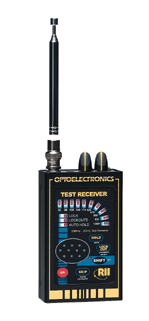

Optoelectronics is pleased to introduce the all new R11 Nearfield FM Test Receiver. Capable of sweeping 30MHz-2GHz in less than one second, the R11 can lock onto a 5 watt UHF signal as far away as 500 feet in less than one second, demodulate the signal through its built-in speaker, and display the general band the frequency is transmitting in on its LED indicator. The R11 Test Receiver presents all new performance, features, and capabilities.

This devise has not yet been approved by the Federal Communications Commission. This device may not be sold or offered for sale, until the approval of FCC has been obtained.

Frequency Range: Analog FM, 30MHz - 2GHz (FCC Law requires Cellular frequencies to be blocked on U.S. versions)
Super Sensitive-Locks onto 5 watt UHF signals as far away as 500 feet
Easy to use keypad functions: Frequency Hold, Frequency Skip, Frequency Lockout, Shift, Enable/Disable Lockouts, and Clear Lockouts
Quick access Squelch and volume controls
LED frequency indication and headphone jack for earphone audio
Scout Reaction Tune: CI-5 dataport in unit allows Reaction Tune with the Scout using mono cable connection
TA100S telescoping whip antenna included
Built-in NiCad batteries and charger included

Frequency Range	30MHz - 2GHz (U.S. versions are Cellular Blocked)
Modulation	FM, Deviation <100KHz
Frequency Responce	50 - 3000Hz
Auto Tune Time	<1 Second
Input	50 Ohm, -45dBm @ 100MHz, -20dBm@1GHz
Outputs	Internal Speaker, Audio out jack
Controls	Audio Level, Power, Squelch, Lockout, Lockouts on/off, Clear Lockouts, Skip, Shift, Hold, Mute
Indicators	LEDs: Lock, Lockouts, Auto Hold, Frequency Range Indicator
Power	Internal NiCad Pack, 7.2V 600mA Hr. 5 hour operation
Enclosure	Powder coated sheet metal
Size	4.25" H x 2.5" W x 1.25" D
