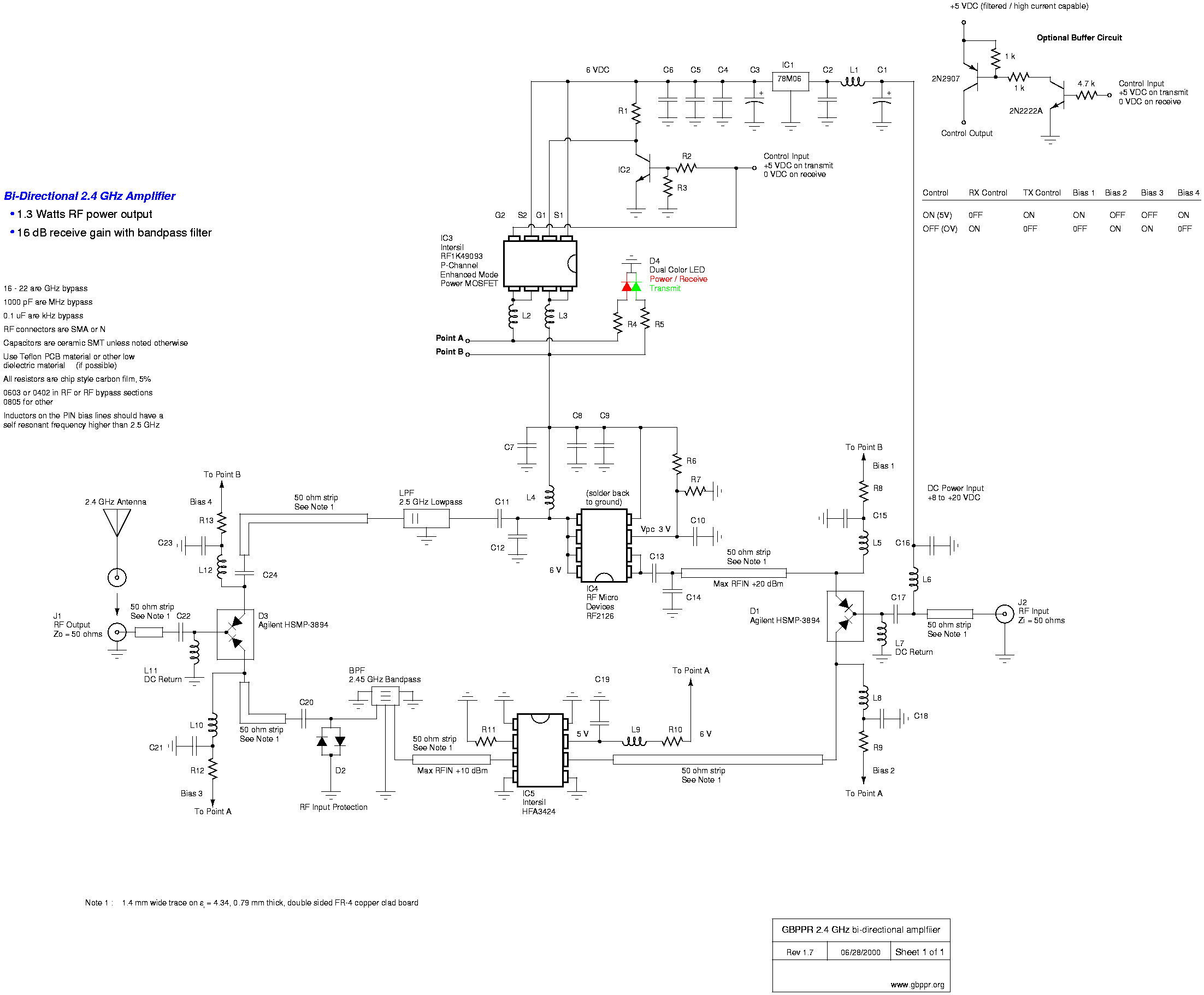

Capacitors
Schematic Reference Value Description Package Supplier Supplier Part Number C1 47 µF electrolytic, 20%, 35V SMT or leaded Mouser 5985-AVS35V47 C3 4.7 µF electrolytic, 20%, 35V SMT or leaded Mouser 5985-AVS35V4.7 C2 0.33 µF ceramic, X7R, 25V 1206 SMT Digi-Key 311-1180-1-ND C4, C5, C8 0.1 µF ceramic, X7R, 16V 0603 SMT Digi-Key 311-1088-1-ND C6, C10, C9 1000 pF ceramic, X7R, 50V 0603 SMT Digi-Key 311-1080-1-ND C19 470 pF ceramic, X7R, 50V 0402 SMT Digi-Key 311-1028-1-ND C7, C15, C16, C17, C18, C20, C21, C22, C23 Note 1 22 pF Johanson ceramic 5%, 100V 0504 SMT Newark 48F4909 C11 Note 1 3.3 pF ceramic, +/- 0.25 pF, 50V NP0 0402 SMT Digi-Key 311-1008-1-ND C14 Note 1 2 pF ceramic, +/- 0.25 pF, 50V NP0 0402 SMT Digi-Key 311-1006-1-ND C12 Note 1 1.8 pF ceramic, +/- 0.25 pF, 50V NP0 0402 SMT Digi-Key 311-1004-1-ND C13 Note 1 1.6 pF ceramic, +/- 0.25 pF, 50V NP0 0402 SMT Digi-Key 311-1003-1-ND (1.5 pF)
Inductors
Schematic Reference Value Description Package Supplier Supplier Part Number L5, L7, L8, L9, L10, L11, L12 15 nH 2% 0603 SMT Digi-Key PCD1296CT-ND L4 4.7 nH 2% 0603 SMT Digi-Key PCD1290CT-ND L1, L2, L3 31 Ohm @ 100 MHz ferrite bead, IDC 500 mA 1206 SMT Digi-Key 240-1028-1-ND L6 12.5 nH Delevan air core, 5% SMT Digi-Key DN4004-ND
Resistors
Schematic Reference Value Description Package Supplier Supplier Part Number R3 22000 Ohm film, 5% 0603 SMT Mouser 301-22k R2 4700 Ohm film, 5% 0603 SMT Mouser 301-4.7k R7 2200 Ohm film, 5% 0603 SMT Mouser 301-2.2k R8, R9, R12, R13 1200 Ohm film, 5% 0603 SMT Mouser 301-1.2k R6 1000 Ohm film, 5% 0603 SMT Mouser 301-1k R1 390 Ohm film, 5% 0603 SMT Mouser 301-390 R4, R5 300 Ohm film, 5% 0603 SMT Mouser 301-300 R10 51 Ohm film, 5% 0603 SMT Mouser 301-51 R11 33 Ohm film, 5% 0603 SMT Mouser 301-33
Diodes
Schematic Reference Value Description Package Supplier Supplier Part Number D1, D3 HSMP-3894 Agilent PIN diode SOT-23 Allied 787-1293 D4 Red / Green dual color LED T-1 3/4 Digi-Key 67-1124-ND D2 Note 2 Schottky barrier diode, series configuration SOT-23 Digi-Key ZC2812ECT-ND
Integrated Circuits / Transistors
Schematic Reference Value Description Package Supplier Supplier Part Number IC1 78M06 6 volt regulator, 500 mA TO-252 Mouser 511-L78M06CDT IC2 2N2222A NPN SOT-23 Mouser 592-MMST2222A IC3 RF1K49093 Intersil p-channel enhanced mode power MOSFET SOP-8 Newark 66F3188 IC5 HFA3424 Intersil 2.4 GHz low noise amplifier SOP-8 Allied 903-0400 IC4 RF2126 RF Micro Devices 1 Watt 2.4 GHz power amplifier SOP-8 Cracker Jack Box
Other
Schematic Reference Value Description Package Supplier Supplier Part Number LPF Note 3 LTF-3216L-F2R4G Toko chip low pass filter 1206 SMT Digi-Key TKS3012CT-ND BPF Note 3 4DFB-2450T-10 Toko 3 pole band pass filter Digi-Key TKS2618CT-ND 6 x 6 inch 1/32 inch double sided, 1 oz, FR-4 dielectric copper clad board Digi-Key PC45-S-ND J1, J2 PCB mount SMA jacks Mouser 530-142-0701-801 0.020 inch silver solder Radio Shack 64-013
Notes
[1] You can also use porcelain SMT capacitors which are available from American Technical Ceramics or Down East Microwave.
[2] Optional RF input protection. Any quality microwave diodes will work. Should be in a SMT package.
[3] Optional filters, not needed but highly recommended.
You are better off buying the SMT resistors from Mouser in groups of 100 each. They only cost $1.90 and they usually throw in a few extra.
