Surreptitious Entry - Lockpicking


An overview and notes on some common lockpicking tools and techniques.

[lock-1]

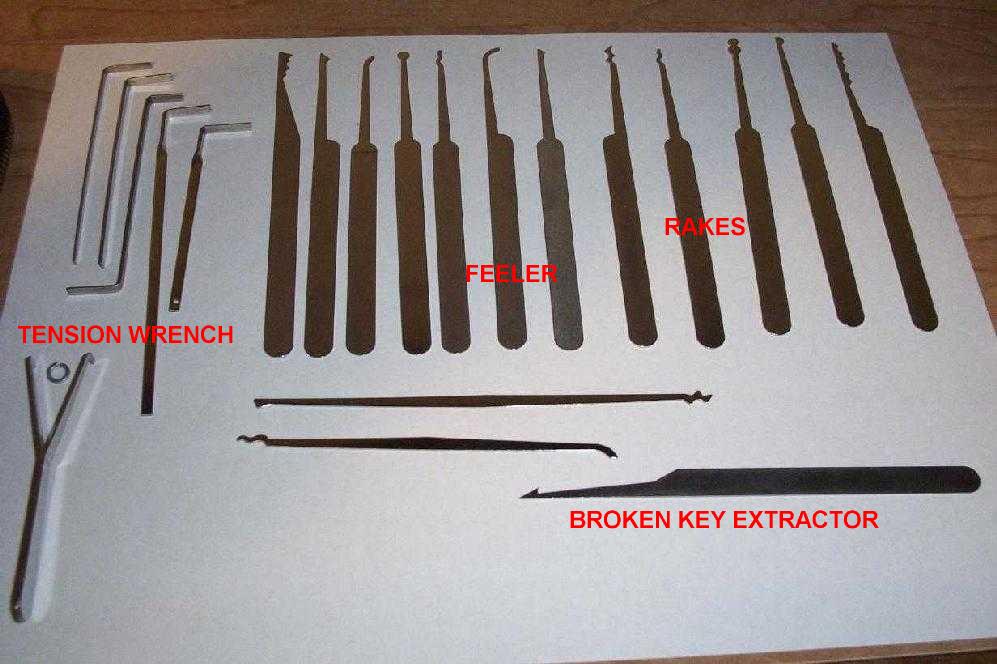

This is what a common lock pick set looks like.  It consists of RAKES such as the Ball, Half Ball and Multi-Diamond designs.  These are used when raking a lock.  FEELER PICKS come in two shapes, Half Hook and Full Hook.  These picks are designed to lift one pin at a time.  TENSION WRENCH a small level-shaped metal bars used to turn the cylinder in a lock.  They are vital to lockpicking.

One of the better locking picking manuals available is the MIT Lockpicking Guide.  Print it out and study it.

Padlock Shims

[lock-3]

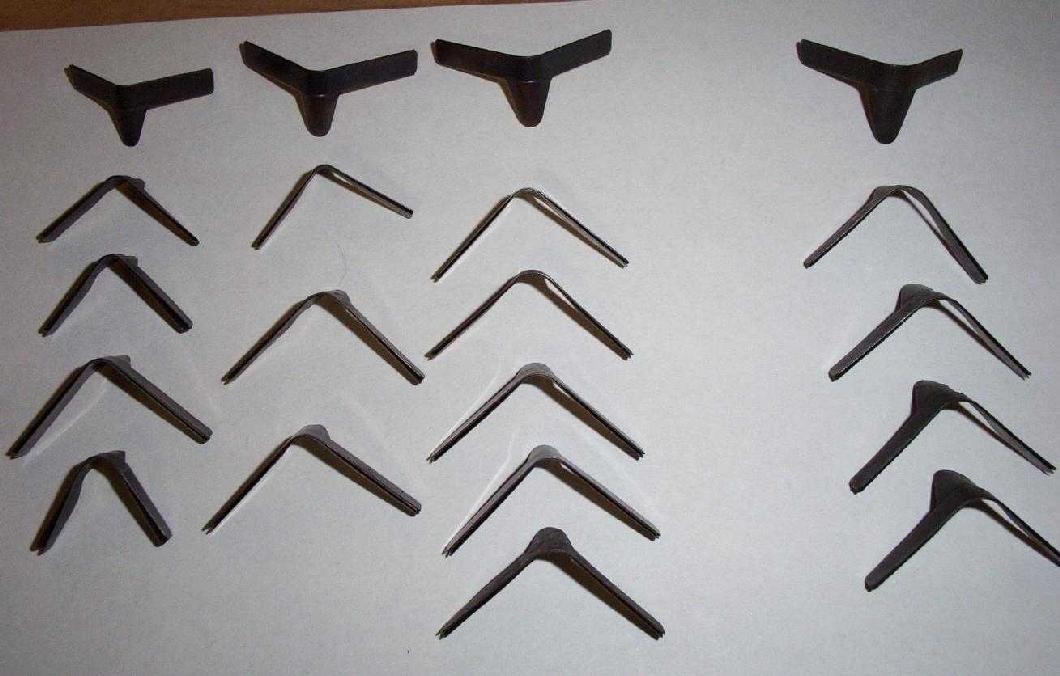

These are clever little metal shims to slide down into the latch on a padlock.  They do work, but will become damaged after a few uses.

Southern Ordance Padlock Shim Set Manual

The shims are designed for use on padlocks with spring operated latch(es).  Generally, they are more effective on the cheaper type of padlocks.  The more expensive locks tend to be made to better specifications and are therefor more resistant to opening with any shims.

For these shims to be effective, there must be sufficient clearance between the shackle diameter and the holes in the padlock body to enable the shims to be inserted.

On single latch padlocks, any slack in the pivot side will help if the clearance is minimal.

These shims have been manufactured from the highest quality carbon spring steel to give more durability and longer life.  Sometimes a shim or pair of shims will open several locks, whereas, occasionally with the better made locks, it may become necessary to try another new shim if it becomes damaged.

Method of Use

First, determine whether the padlock is single or double latched.  If this is not known, then slide a single shim down the inside of the pivot leg of the shackle to feel for a latch.  Ideally, knowledge of the lock is the best way of knowing whether it is single or double latch.

Single Latch Padlocks

For most padlocks, the latched leg of the shackle is generally on the same side as the serrations of the key.  Choose a shim having the same or slightly larger bend radius than the shackle diameter.

A slightly larger radius will close down to the correct shape more accurately than an undersized one will open up.  It may also be necessary to shorten the length of the arms before using a shim on smaller padlocks.

  1. Exert some pressure on the pivot side of the shackle to ease the shackle towards the latch side and increase the clearance between the shackle diameter and the hole.
  2. Then insert the shim into the clearance on the outside of the shackle opposite the latch, and twist and push the shim down as far as possible.
  3. When it is fully inserted, rotate the shim around the shackle so that the tongue of the shim approaches the latch from the side and eases it back.  Once the shim has been rotated until the wings of the shim are pointing outwards away from the lock, it is likely that the latch has been sprung and the shackle can be pulled up to open the lock.

[shim]

Double Latch Padlocks

Use the same procedure as for the single latch, but when the first shim is positioned, exert pressure on the outside of the pivot side of the shackle and ease another shim into the clearance.  Again, twist and push the shim down into the gap until it is fully down.  Then rotate this shim around the shackle until the wings are pointing outwards.  With the better padlocks, it is this last maneuver that is difficult or even impossible.  However, once both shims are down and rotated outwards, it is probable that the padlock can be pulled or easily forced open.

One some types of padlocks with weak latch springs, it may be possible to force the shim down onto the latch(es) directly from above, and ease it (them) back.  However, if this technique is used on a latch with strong springs, the tip of the shim could bend and the latch would not be pushed back far enough to release the shackle.

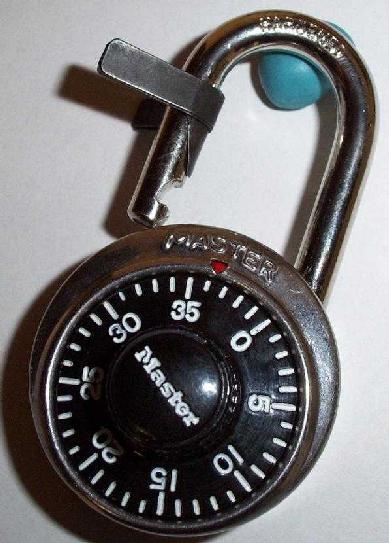

Picture overview of a shim on a Master combination padlock

Lockpicking Guns

[lock-6]

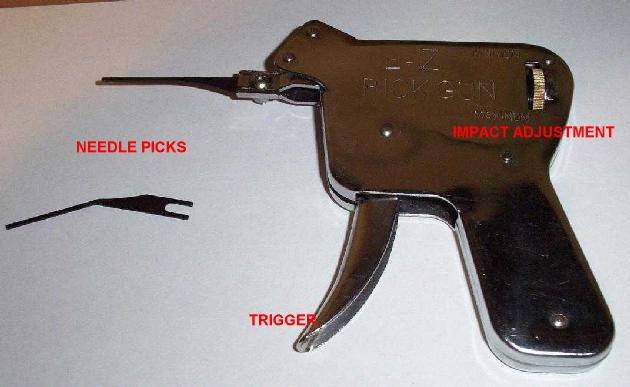

Though highly overrated (you can pick most locks with just a feeler pick and a tension wrench), mechanical lockpicking guns do actually work.  With a little practice, you can open some locks in seconds.  The lockpick gun also requires the use of a tension tool for turning the lock's cylinder.

E-Z Pick Gun Manual

Adjusting the Tension

Use of the Tension Tool

Inserting Point on Needle

Working the Trigger of Tool

Offset Needle

Simple Tension Tool Trick

[lock-2]

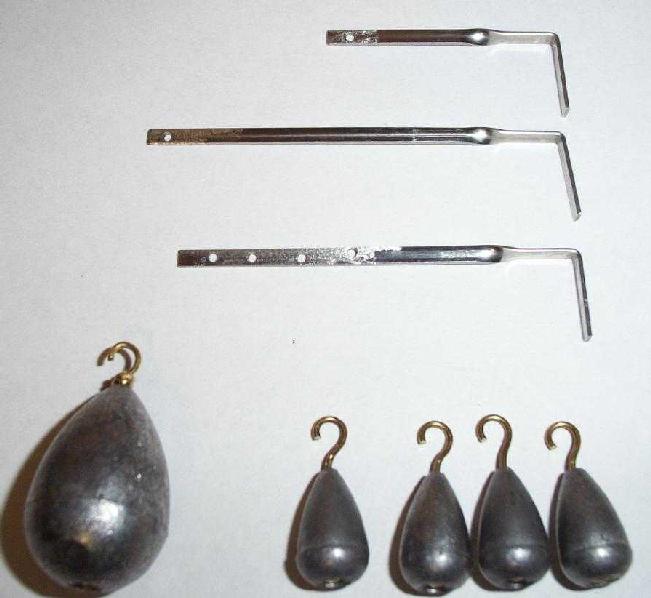

Here is simple trick you can use to apply the right amount of tension on a cylinder while trying to pick a lock.  It involves drilling several 1/16" holes in the handle of a tension wrench to allow the hanging of some lead fishing sinkers.  The sinker's eyelet need to be modified slightly by clipping one side to form a hook.  Be sure to use high quality drill bits when drilling the tension wrench holes.

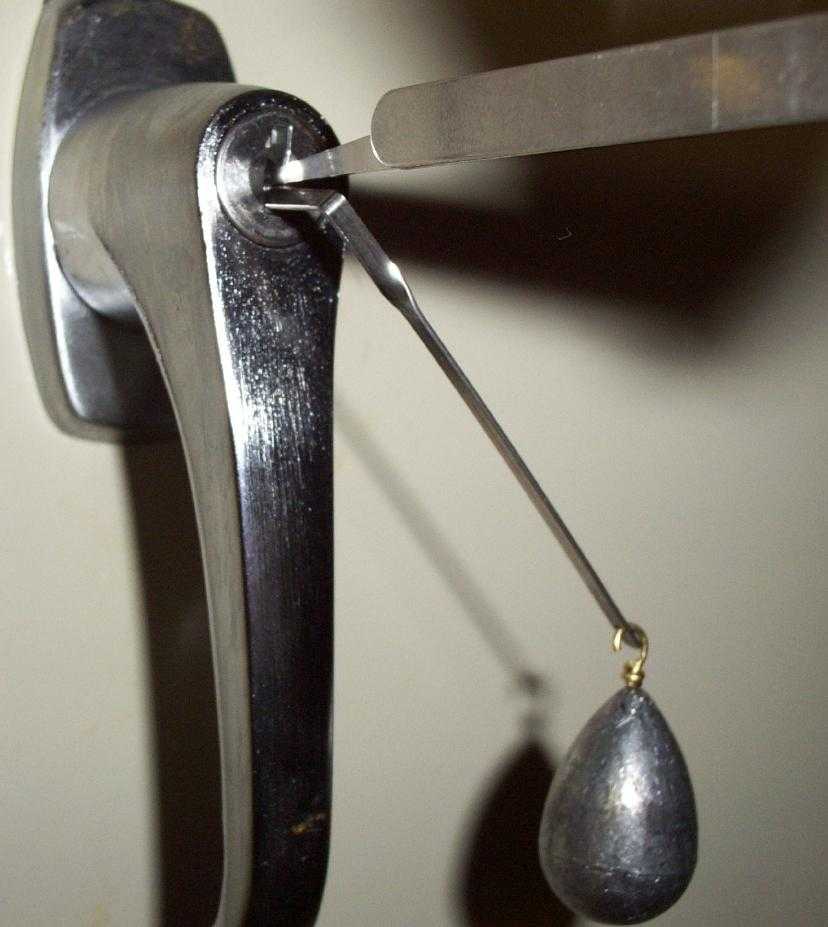

Picture overview of a lead sinker tension wrench in operation

Links & Notes

  1. Surreptitious Entry Tips
  2. Finding a "Lost" Combination for a Master Padlock  (47k PDF)
  3. Master Lock Combination Cracking
  4. Several Lockpicking Text Files
  5. TOOOL - The Open Organization Of Lockpickers
  6. Lockpicking 101
  7. How to Recover the Combination for a Master Combination Lock
  8. Simplex Locks: An Illusion of Security
  9. Simplex 5-Button Combination Locks
  10. Instructions on Recovering a Lost Master Lock Combination
  11. Locraker  Automatic combination lock cracker.
  12. Bumping Locks  by Barry Wels & Rop Gonggrijp  (556k PDF)
  13. Bump Keys  Photo overview by Zeke79
  14. Wendt Opening Tools  (Catalog)
  15. Lockpicking  by Deviant Ollam
  16. Southern Ordnance  Hobbiest lockpick vendor
  17. Peterson International  Professional lockpick vendor
  18. Gurney's Defcon Lockpicking Page
  19. Matt Blaze's Lock Photos
  20. Safecracking for the Computer Scientist  by Matt Blaze  (2.7M PDF)
  21. Impressioning Manual for Amateur Locksmiths
  22. Guide To Lockpicking Tubular Circular Locks
  23. Greg Miller's Guide to Lockpicking for Beginners
  24. Key Spacing & Depth Tips
  25. PlugSpinnerDrDave.ZIP  Plans for a homebrew plug spinner, by Dr. Dave  (MISSING - Don't know how it got deleted and I don't have a backup!)
  26. Improvised Lock Picks  (2.5M PDF)
  27. CIA Lockpicking Manual  (2.3M PDF)
  28. Lock Picking: Detail Overkill  by Mike Gibson  (1.3M PDF)
  29. MIT Guide to Lockpicking  by Ted the Tool  (521k PDF)

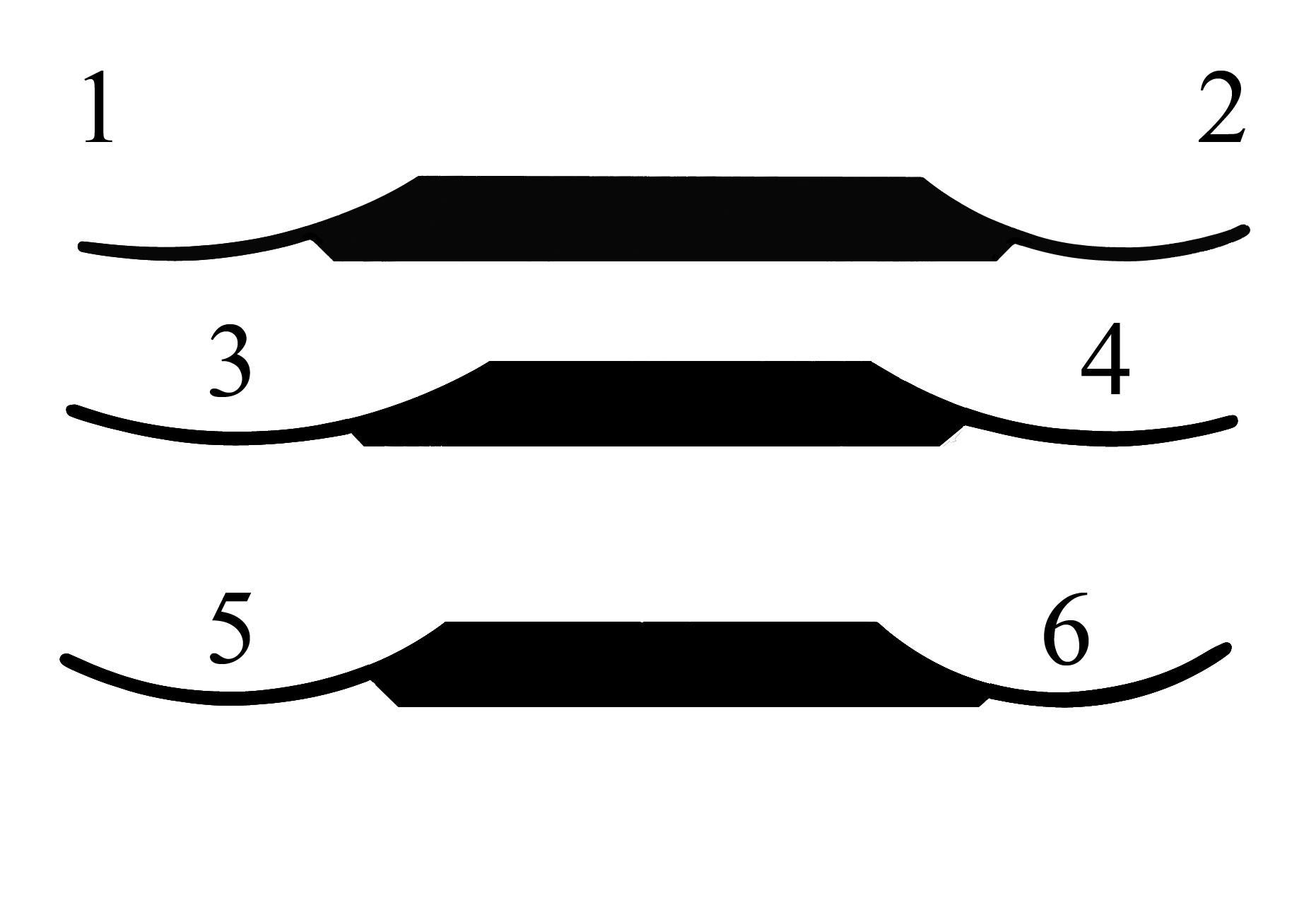

  30. Lock Pick Templates  (88k PDF)
  31. Secrets of Lockpicking  by Steven Hampton  (727k PDF)
  32. How Lockpicking Works  (500k PDF)
  33. Catalog of High Security Locks v1.0  by Graham Pulford  (135k PDF)
  34. Lockmaster's Catalogs  Direct catalog downloads.
  35. Lockpickshop.com  Sells lock picks
  36. Abus Internal Lock Pictures - #1  (Abus Internal Lock Pictures - #2)
  37. Compromising Locks  http://dp.penix.org/locks mirror site.  Has a few missing pictures.
  38. The (SoftDrill) Computer Manipulation System
  39. Mas-Hamilton SoftDrill Information

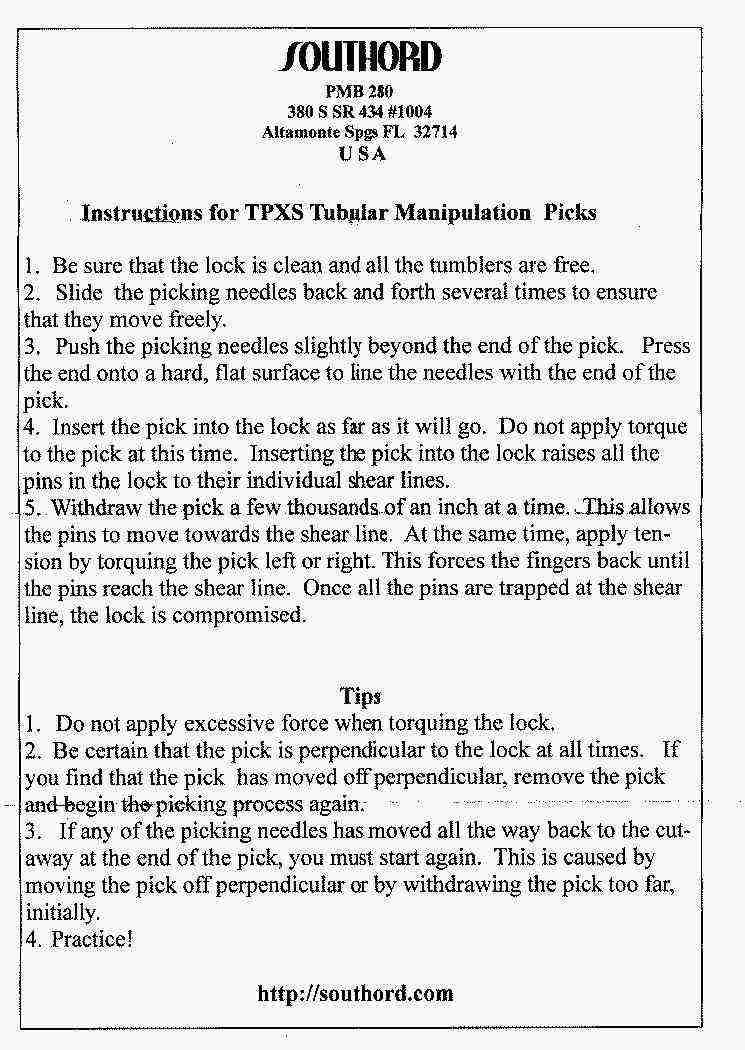

  40. SouthOrd TPXS Tubular Manipulation Picks  Manual
