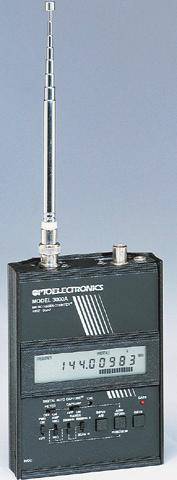

The 3000A is the first handheld frequency counter to combine the computing power of a microprocessor with the OE10 high speed counter IC to provide unparalleled counting capabilities. The 3000A can capture off-the-air signal frequency completely without operator intervention - and record the result in internal memory.
The microprocessor digitally filters the RF signal frequencies to reduce spurious counting. All of this is done without relying on the signal strength to exceed some arbitrary level, ensuring reliable performance in today's dense signal environments. Proprietary software monitors the incoming RF for stable, coherent signals, and only when these conditions are satisfied will the count be presented to the user.
Internal memory allows the 3000A to store the last three filtered frequencies for later examination. This feature allows for unattended operation.
The 3000A has four separate input amplifiers to push sensitivity to new levels. This was done for a very simple reason: the wider bandwidth a counter front end has, the higher it's inherent noise floor and the lower the sensitivity. This is the concept behind the Optoelectronics APS104 active preselector, and is applied here for the first time in a frequency counter.
This does not mean the 3000A sacrifices bandwidth for sensitivity. However, the input circuitry has been designed to cover the 10Hz to 3GHz range in bands, chosen to optimize sensitivity for each application.
The direct 1 to 250MHz input is used primarily for setting crystal oscillators on frequency and monitoring HF through VHF communications. Here, a high gain preamplifier yields sensitivies typically below 1 millivolt.
The next higher band includes the 10MHz to 1000MHz region, chosen to include most common VHF and UHF two-way radio traffic. The highest frequency band covers 500MHz to 3GHz. By blocking out troublesome lower frequency signals like broadcast FM and TV, weak cellular radio signals can be isolated and measured.
Newly designed FET input preamplifiers deliver high sensitivity from 10Hz to beyond 50MHz, while reducing battery drain. Two identical amplifiers are used for Ratio and Time Interval measurements.
Digital Communications Port
The 3000A is equipped with a TTL asynchronous serial interface which
allow the units to be connected to a personal computer for the purpose
of reading frequency information. The three-wire interface is accessible
via a 1/8th inch stereo phone jack. The OptoLinx is required to convert the TTL signals to RS-232C levels compatible with most personal computers.
Antennas - Maximize performance for a particular band.
Filters - Eliminate unwanted signals outside the desired band.
Time Interval (TI) Mode "A" Start "B" Stop Minimum pulse width is 200nS. Period/TI Max Resolution Single Shot - 100 nS. Averaged - .1 nS. Max Display: 999.999 999.9 uS Period/TI Average Averages 10, 100, or 1000 measurements for increased resolution. Time Base 10 MHz Stability: +/- 1ppm 20-40oC Aging: 1ppm/yr typ. Display 10 Digit (120 segment) Liquid Crystal Display. Low Battery Indicator "LOW BATT" displayed when battery pack needs charging. Annunciators Frequency, Period, Interval, Ratio, Average, MHz, uS, nS, Low Batt, Prescale, A, B, Intervals/Periods Averaged Size 5.3" high x 3.9" wide x 1.4" deep. Weight 15 oz. Cabinet Extruded Aluminum, black paint finish Power 9VDC, 150 mA using model AC90 wall plug adapter. 5-6 hours operation from internal batteries
Input A | Input B | |||
Amplifier: | 1 Meg Ohm | 50Ohm | 1 Meg Ohm | 50 Ohm |
Impedance: | 1 Meg Ohm, 30pF | 50 Ohm vswr <2:1 | 1 Meg Ohm, 30pF | 50 Ohm vswr <2:1 |
Range: | 10Hz - 50MHz | 10MHz - 220MHz | 20Hz - 10MHz | 500MHz - 3GHz |
Sensitivity (Typical) | <25mV 10Hz - 10MHz | 200MHz Range: | 25mV 10Hz - 10MHz | 3GHz Range: |
<30mV 10MHz - 50MHz | <5mV@10MHz | <25mV 10MHz - 50MHz | <800uV@400MHz | |
<600uV@150MHz | <2mV@1GHz | |||
800MHz Range: | <7mV@2GHz | |||
<800uV@200MHz | <60mV@3GHz | |||
<800uV@400MHz | ||||
<3mV@700MHz | ||||
Maximum Input Signal: | 50V AC+DC | +15dBm(50mW) | 50V AC+DC | +15dBm (50mW) |
Range | Gate Select | Gate Time | Measurement Time | LSD Resolution | Sample Display (MHz) |
200 | 1 | 100uS | 13mS | 10kHz | 150.00 |
2 | 1mS | 13mS | 1kHz | 150.000 | |
3 | 10mS | 13mS | 100Hz | 150.0000 | |
4 | 100mS | 110mS | 10Hz | 150.00000 | |
5 | 1S | 1S | 1Hz | 150.000000 | |
6 | 10S | 10S | 0.1Hz | 150.0000000 | |
800 | 1 | 400uS | 13mS | 10kHz | 440.00 |
2 | 4mS | 13mS | 1kHz | 440.000 | |
3 | 40mS | 50mS | 100Hz | 440.0000 | |
4 | 400mS | 410mS | 10Hz | 440.00000 | |
5 | 4S | 4S | 1Hz | 440.000000 | |
3000 | 1 | 1.6mS | 13mS | 10kHz | 3000.00 |
2 | 16mS | 25mS | 1kHz | 3000.000 | |
3 | 160mS | 170mS | 100Hz | 3000.0000 | |
4 | 1.6mS | 1.6S | 10Hz | 3000.00000 |
Time Interval Mode | "A" Start "B" Stop, Minimum pulse width is 200nS. Triggers on rising edge |
Period Resolution | Single Shot - 100nS. averaged - .1nS Max Display: 999 999 999.9uS |
Period / Average | Averages 10, 100, 1000 measurements for increased resolution |
Time Base | 10MHz stability: +/-1ppm 20-40 degrees C Aging: 1ppm /yr. typ. |
Display | 10 digit (120 segment) Liquid Crystal Display. Decimal at MHz point |
Power | 9VDC, 150mA using model AC90 wall plug adapter. |
Size | 5.3" high x 3.9" wide x 1.4" deep. Weight 15oz |
Annunciators | Frequency, Period, Interval, Ratio, Average, MHz, nS, uS, Low Batt, Prescale, A, B, Intervals / Periods Averaged |
