RTTY SYNOP WEATHER MAPS

Plot your own real time Weather Maps with SYNOP Data Received via Shortwave Radio

Receive the RTTY Synop Data via Shortwave and plot your own Weather Maps with SKYVIEW SYNOP from Skyview Systems UK ( Germany Supra PC SYNOP from SupraTec). Here are some example maps from Europe, Sunday 08-06-96 1200 UTC (a "tropical" day here in Germany) represents reports FM 13 (Ships) and FM 11 (Land Stations) plotted with the German version Supra PC SYNOP 5.2:

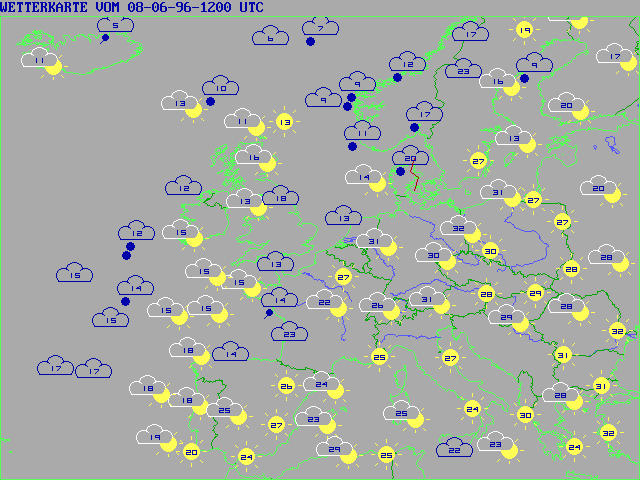

Pictorial Map

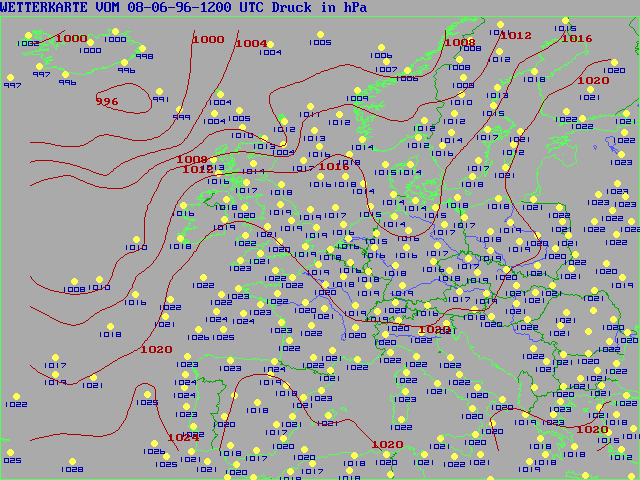

Pressure with Isobars

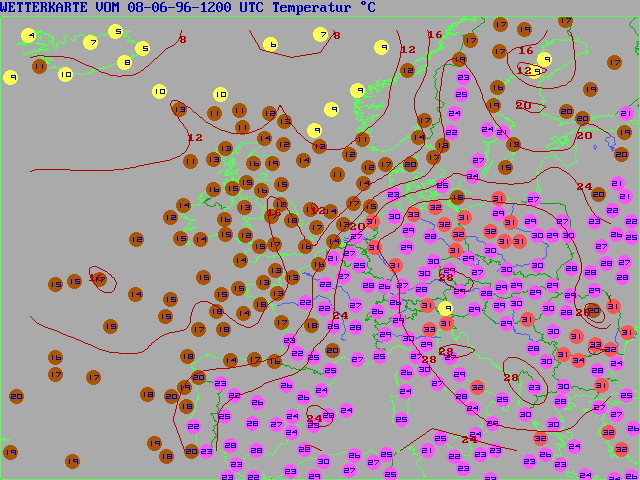

Temperature with Isotherms

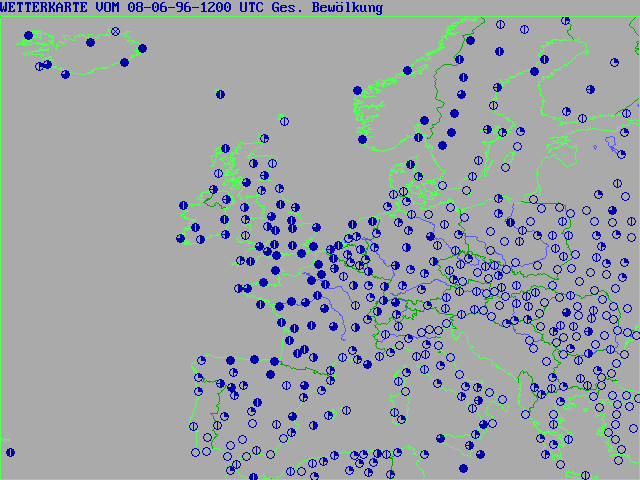

Clouds (cover to the nearest full Octa)

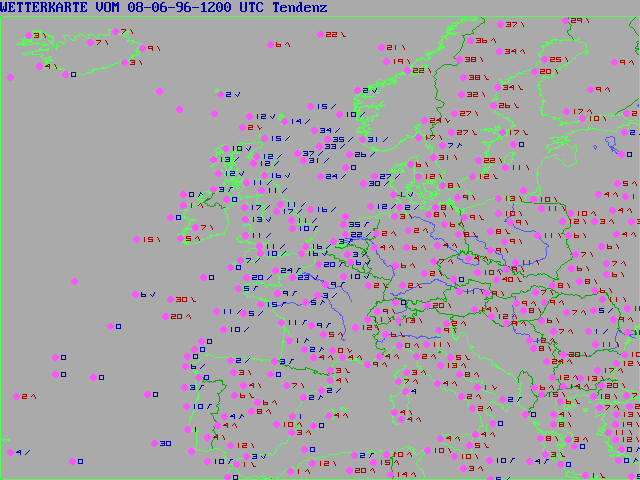

Tendency (arrow-type symbol denotes rising or falling pressure for the past 3 hours, the value is in 10ths of a millibar)

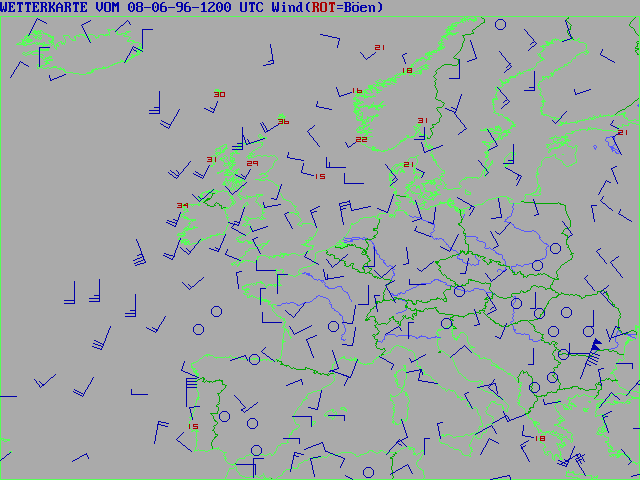

Wind (with wind speed in symbolic form and the Maximum Wind Gust)
Max/Min Temperatures (for Europe only reported at 0600 UTC min. and 1800 UTC max.)

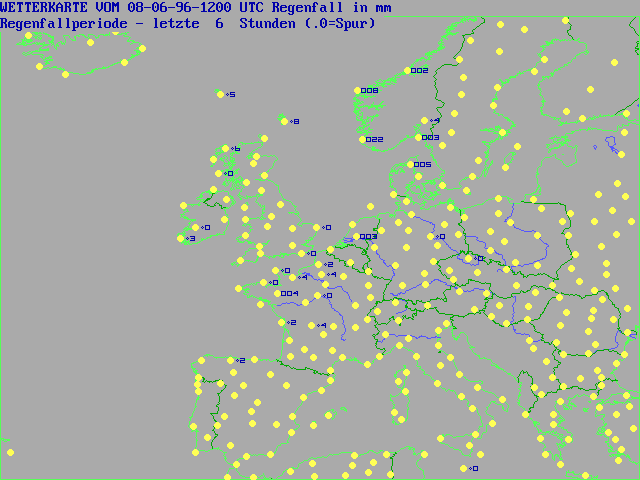

Rainfall (last 6 Hours in mm)

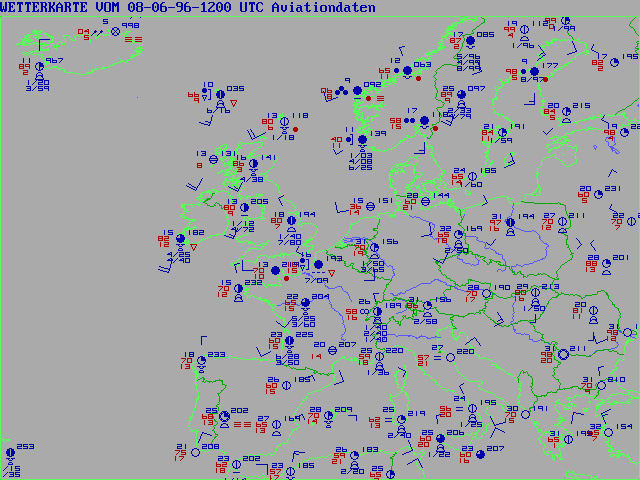

Aviation Data

For more Information Contact:

SKYVIEW SYSTEMS
Skyview House
Cockaynes Lane, Alresford
Essex, CO7 8BZ
Phone: UK 0206 823185
Fax: UK 0206 825328
Or visit the Homepage from TT Designs UK a distributor for SKYVIEW SYNOP.

Supra PC SYNOP
SUPRATEC
Aichinger und Forster GmbH
Klinggraben 28
D-84163 Marklkofen
Phone: ++49 8734 93000
Fax: ++49 8734 7788
mailto:supratec@t-online.de
Or visit the Homepage from SupraTec Germany distributor for Supra PC SYNOP

For Frequencies and Schedules visit the Homepage from Klingenfuss Publications
The Guide to Utility Radio Stations wich includes Worldwide Meteo Frequencies and Schedules.
And for detailed Information about Decoding Meteorological Data the Air and Meteo Code Manual.
