JVComm32 from DK8JV together with EasyDSP from DF6JB is the new revolution for Image Communications.
Just testing the JVComm32 Beta version 0.6 from Eberhard Backeshoff, DK8JV. The author who was written also the populair JVFAX software, wrote
JVComm32 for use with DSP controller such as the new EasyDSP from DF6JB. JVComm32 will running only with Windows 95 or Windows NT, not with Windows 3.1
or Windows 3.11 for Workgroups.
JVComm32 decodes all Fax modes, FM for shortwave, AM for Geo- and Polar Satellites, also H 288/120 and Ham 288B.
Also all "Free Run" SSTV modes Martin M1 and M2, Scotti S1 and S2, Scotti DX, Wraase 180s, Pasakon P3, P5 and P7.
Eberhard Backeshoff DK8JV has now his own JVComm32 WWW Page

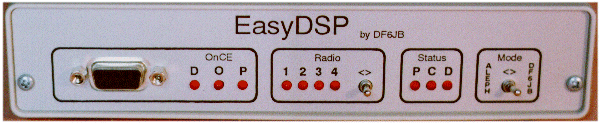

The EasyDSP from Ulrich Bangert DF6JB is now available. The universal DSP controller works with the Motorola DSP56002, and a lot of software is available.
EasyDSP software example: JVComm32 (see before), 5 CW filter 100Hz-500Hz, automatic CW filter from SP9VRC, automatic Notchfilter and Noisefilter from OH2LNS, 300,1200 and 9600 bit/s AFSK TNC
from OH2LNS/DF6JB, Emulation Simple/Hamcomm modem, Emulation Zornslemma converter, Emulation Faxellite (Digisat) convertor, Emulation Multiscan (PA3GPY) convertor, Emulation Code3 LF3 convertor,
AMSAT Phase-3D telemetry simulator, Phase-3D telemetry de-modulator 1200 bit/s RS-232

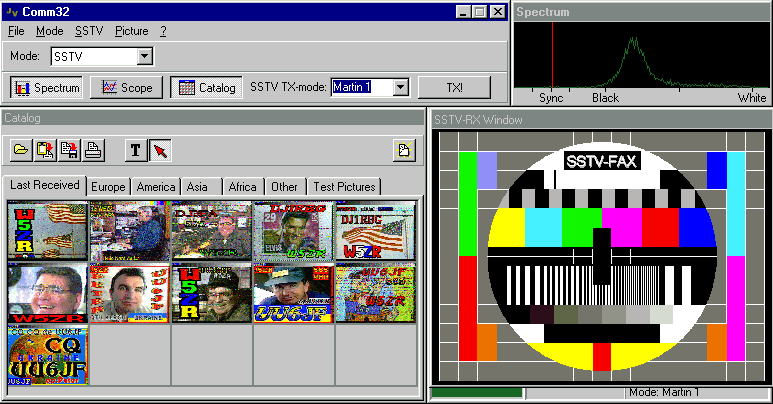

SSTV DX on 15m
HF-FAX USCG Boston (NMF) USA

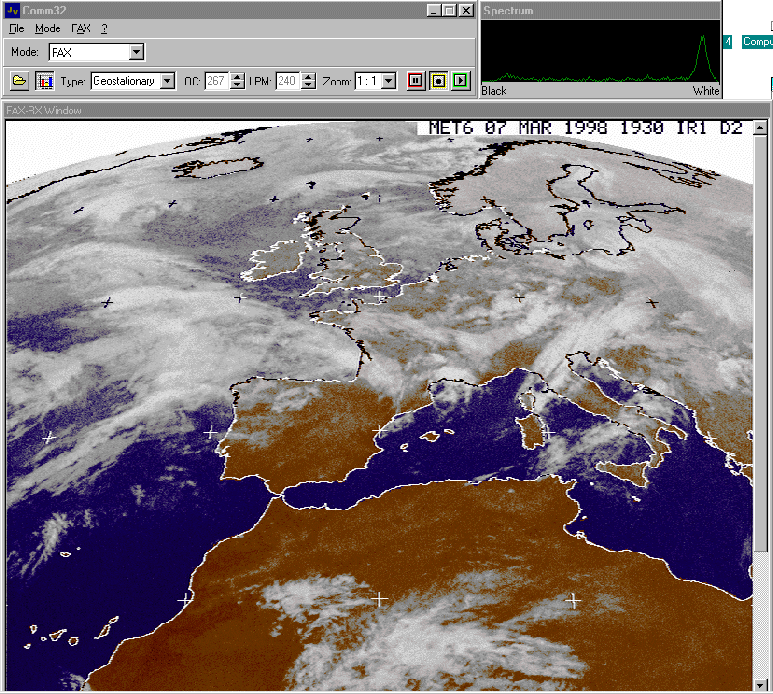

Geostationary Satellite Meteosat 6

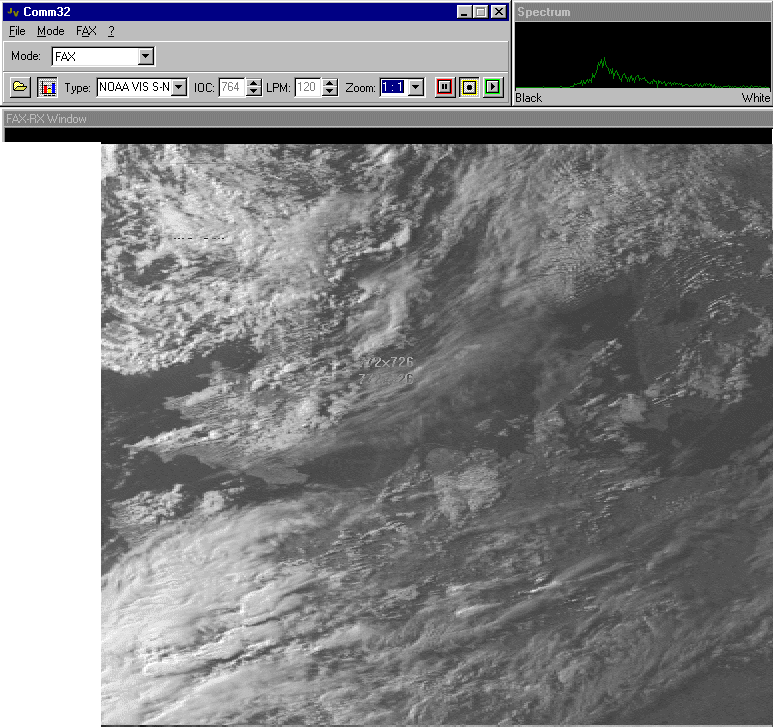

Polar Orbiter Satellite NOAA 12
